5-Axis CNC Machining Explained: Benefits and Applications

Five-axis machining, as the name suggests, is a mode of CNC machine tool machining. It employs linear interpolation motion in any five coordinates of X, Y, Z, A, B, and C. The machine tools used for five-axis machining are commonly referred to as five-axis machines or five-axis machining centers. But do you really understand five-axis machining? Let’s uncover all of 5-axis CNC machining’s hidden benefits and applications!
What Is 5-Axis CNC Machining?
5-axis CNC machining is an innovative manufacturing technique that utilizes five axes simultaneously for tool movement – unlike traditional 3-axis systems which only permit three linear movements at any one time – providing increased flexibility and precision.
Rotational axes allow this tool to approach a workpiece from various angles, providing greater ability for creating intricate forms or complex geometries effortlessly.
Real-time adjustments ensure these machines produce accurate components with pinpoint precision – perfect for industries in which precision is of utmost importance.
5-axis machining also reduces setup times as parts require fewer repositioning operations; as a result, manufacturers can achieve quicker turnaround times without any compromise in quality.
This technology unlocks innovative designs previously considered impossible within conventional machining constraints and revolutionises how products are designed and produced across different sectors.
How Does 5-Axis CNC Machining Work?
5-axis CNC machining employs an intricate mechanism in which tools simultaneously move along five distinct axes, improving precision and adaptability and making intricate shapes possible.
At its heart, this machine uses a rotating spindle which allows it to tilt or rotate along multiple planes for precise geometry that 3-axis machines often struggle with.

Starting from scratch requires starting with CAD software design and engineering to develop detailed models which are then converted to machine language by means of CAM programming, after which, once configured, machines operate seamlessly to execute commands seamlessly.
As it cuts material from various angles, 5-axis machining maintains precision throughout. Operators can achieve smoother finishes in less setups due to this versatility; often this reduces production times and waste – making 5-axis machining an efficient choice for many manufacturing needs.
Advantages of 5-Axis CNC Machining
Five-axis CNC machining offers unparalleled precision for fabricating complex designs – something traditional machining methods cannot match, thus producing higher quality parts with reduced need for rework and thus producing higher returns for investment.
Five-axis machine tools offer another significant benefit: efficiency. By moving simultaneously on multiple axes, these machine tools can quickly complete complex operations while minimizing errors during part processing; saving both time and labor costs in the process.
Flexibility is another significant advantage. Manufacturers no longer face restrictions imposed by toolpaths or machine limitations that prohibit processing different materials and shapes, opening up more opportunities for innovation.
Five-axis machining improves surface finish quality by approaching workpiece from multiple angles, thus minimizing machining marks and increasing aesthetic appeal, an advantage particularly valuable in industries with demanding visual standards.
Over time, this technology can reduce labor and material waste through improving production processes – saving both money and labor expenses in the process.
Industries That Can Benefit from 5-Axis CNC Machining

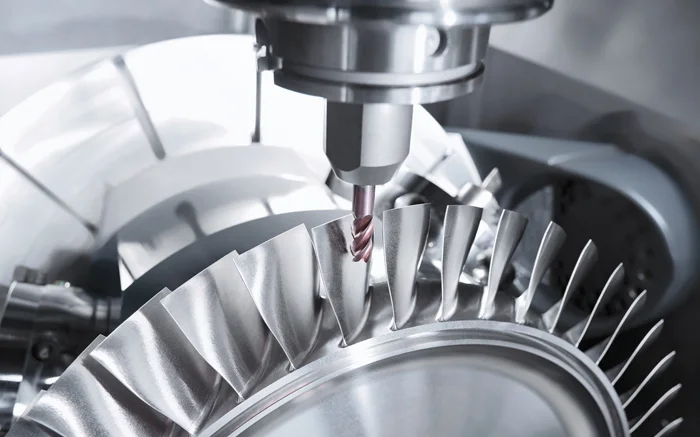

5-axis CNC machining technology has proven itself valuable across numerous industries, particularly those involved in aerospace production. 5-axis machining enables efficient production of intricate pieces such as turbine blades or fuselage sections for fast turnaround times and tight tolerances.
Automotive industries also benefit greatly from advanced machining processes. Car manufacturers enjoy shorter lead times while simultaneously producing top-quality prototypes and production parts at high production volumes.
Medical device manufacturing provides similar benefits; medical devices frequently necessitate intricate geometries that require intricate machining techniques for completion.
Electronics professionals also employ 5-axis CNC for creating housings and circuit boards with stringent quality standards in mind, whether crafting delicate surgical instruments or robust automotive parts; 5-axis machining serves an indispensable role across disciplines.
Common Applications of 5-Axis CNC Machining:
- axis CNC machining has made itself known throughout various industries thanks to its versatility. One notable application of 5-axis machining can be seen in aerospace where complex geometries are commonplace – turbine blades and brackets require high levels of accuracy that only 5-axis CNC can provide.

Medical device manufacturing is another significant field, where high accuracy and patient safety require parts such as implants and surgical instruments to function effectively and provide patient safety. 5-axis machines’ ability to create intricate designs makes them indispensable tools in this environment.
Automotive industries also benefit greatly from this technology, with custom parts, prototypes, and molds quickly manufactured with impressive accuracy and speed – speeding up design-to-manufacturing processes dramatically.
Energy companies utilize 5-axis machining for components used in wind turbines and other renewable energy sources; precision is of key importance here as it increases both efficiency and durability in these applications.
Choosing the Right Machine for Your Needs
Finding a 5-axis CNC machine to meet your project requirements can be a difficult decision. Start by reviewing both its complexity and materials you plan to work with before making your choice.
Carefully consider your budget before investing in higher performance machines. While high-performance machines may cost more upfront, they tend to provide greater precision and speed which save time overall in the long run.
Consider space requirements too: machines such as these need ample room for operation and maintenance access, so don’t overlook this element – cramped spaces could lead to inefficiencies that cost time and money in productivity gains.
Consider manufacturer support options carefully when purchasing machines. A reliable service team is essential when installing or troubleshooting down the line; prioritizing this factor helps guarantee you select a machine which aligns perfectly with your production goals and operational needs.
Conclusion
CNC machining has quickly emerged as an innovative solution in modern manufacturing, due to its ability to precisely cut complex geometric forms with pinpoint precision. Five-axis machining has applications across numerous industries ranging from aerospace components and precision medical devices manufacturing, all the way through aerospace component production – its applications truly limitless!
Five-axis machines provide numerous benefits to workshops. They increase efficiency, decrease setup times and enhance surface finish – qualities which have become indispensable in an increasingly dynamic industry. As this technology becomes ever more critical to maintaining competitive advantage for companies looking to remain ahead.
Consider factors like material type, part complexity and production volume when selecting an ideal machine for you. Carry out thorough research so your chosen model meets all operational specifications perfectly.
Opting for 5-axis CNC machining can increase productivity and quality on projects significantly, positioning you at the forefront of innovation in your industry.
