USB PCB Layout Best Practices Every Hardware Designer Should Follow

Universal Serial Bus has become one of the most widely used connections in advanced electronic systems. From easy customer appliances to complicated industrial and medical gadgets, USB allows power delivery, transfer of data, and device transmission through an interchangeable connector. While USB seems simple at the system level, PCB layout for USB is highly sensitive, particularly as data rates rise from USB 2.0 to USB 3.x and USB-C.

A badly organized USB PCB layout can result in signal integrity issues, EMI/EMC failures, computation problems, irregular connections, or whole communication failure. Thus, understanding and involving USB PCB format best practices is important for every hardware designer. USB PCB layout best practices ensure dedicated signal integrity, controlled resistivity, decreased EMI, and potent power delivery for steady and high-speed USB communication.

Step 1: Understanding the USB Standard and Design Objectives:

The basis of a successful USB PCB format starts with a complete knowledge of the specific USB standard being executed and the general layout goals of the product. A hardware designer must preferably specify whether the design is planned to help low-speed, full-speed, high-speed, or SuperSpeed transmission, as this decision directly impacts the rules of routing, the needs of resistance, and material preference.

USB 2.0 Signals:

• VBUS: Power line
• GND: Ground reference
• D+ and D−: Differential data pair

USB 2.0 works at:

• Low Speed: 1.5 Mbps
• Entire Speed: 12 Mbps
• Higher Speed: 480 Mbps

At this step, developers also describe product limitations such as the size of the board, layer count, price targets, and observance conditions. By plainly understanding the USB standard and system objectives at the start, many layout-related problems can be avoided later in the design process.

Expert’s Insight:

“To achieve proper USB impedance control, USB differential pairs must be routed with controlled impedance. The differential impedance of the D+ and D− lines should typically be 90 ohms (±10%) for USB 2.0, and tighter tolerances are required for USB 3.x and above. You can determine the correct trace width and spacing by using an impedance calculator or simulation tool based on your PCB stack-up and material.”

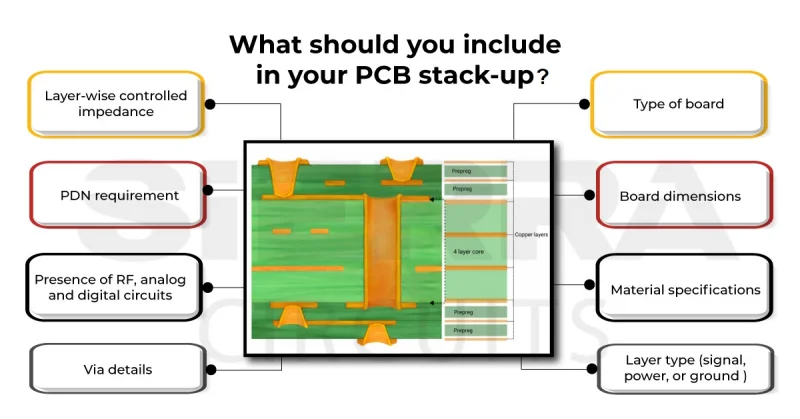

Step 2: Planning the PCB Stack-Up for USB Signals:

Once the USB standard is described, the following essential stage is designing a suitable PCB stack-up that helps high-speed signal integrity. USB signals, specifically at high-speed and SuperSpeed data swiftness, act as controlled communication lines rather than simple links. For this reason, a constant concern plane, usually a solid ground plane, must be positioned directly under the USB signal layer.

Best Practices:

• Avoid splits in planes beneath USB signals.
• Opt for four layers for USB 2.0, 6+ layers for USB 3.x.
• Keep trace lengths matched and minimize vias.
• Use controlled impedance: ~90 Ω differential for USB 2.0

An inadequately designed stack-up can make it impossible to acquire the needed differential impedance, even with detailed routing. Therefore, early association with the PCB manufacturer is critical to ensure that the stack-up helps USB impedance marks.

Step 3: Establishing Controlled Impedance Requirements:

After completing the stack-up, the designer must specify managed impedance conditions for the USB traces. USB differential pairs need a specific differential impedance to assure clean signal transmission and reduce considerations.

Best Practices:

• Treat high-speed digital signals as transmission lines
• Assume impedance control is mandatory above 50 MHz or fast edge rates
• Always refer to the latest interface specification

Controlled impedance is performed by modifying trace width, spacing between differential pairs, copper thickness, and dielectric properties. This phase is not a one-time estimation but an iterative process that applies simulation, manufacturer feedback, and sometimes test coupons on the PCB panel.

USB PCB Layout Best Practices:

Step 4: USB Connector Placement and Entry Routing Strategy:

Correct arrangement of the USB connector is a critical step in minimizing signal debasement and facilitating routing. The connector should be arranged as close as possible to the USB regulator or transceiver to diminish trace length and insertion loss. Long USB traces increase vulnerability to noise, signal weakening, and EMI. By planning the connector arrangement carefully, the designer makes a clean and foreseeable path for USB signals to traverse from the outside world into the appliance.

Step 5: Differential Pair Routing and Length Matching:

Differential pair routing is one of the most crucial steps in USB PCB layout. USB data lines depend on differential signaling to enhance noise immunity and decrease electromagnetic emission. To conserve these advantages, both traces of the differential pair must be routed jointly, possessing invariant spacing and similar electrical length.

• Maintain adequate spacing from other signal groups.
• Avoid running differential pairs parallel to noisy single-ended signals for long distances.
• Keep USB differential pairs away from high-speed clocks and power switching traces

This stage directs careful attention and often the use of PCB layout tools that supply real-time length matching and differential pair management

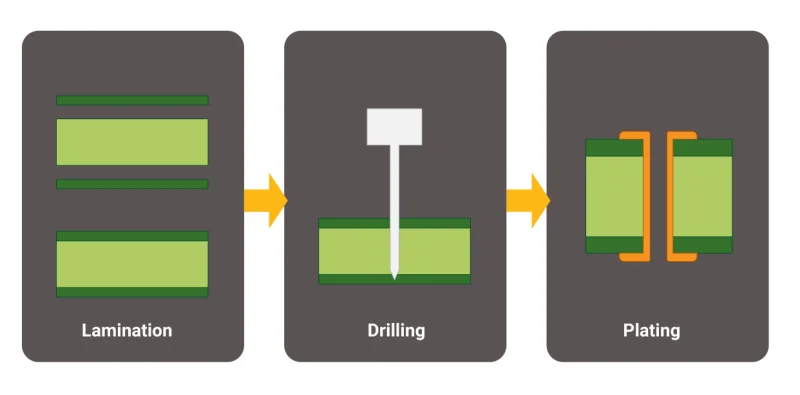

Step 6: Managing Vias and Layer Transitions:

Vias present parasitic inductance and capacitance that can disrupt high-speed USB signals, causing via management to be a crucial step in the setup process.

• Place vias symmetrically on both traces of a differential pair
• Use back-drilling for very high-speed interfaces
• Minimize the number of vias on impedance-controlled signals
• Avoid unused via stubs

In high-speed USB 3.x designs, developed methods such as back-drilling may be needed to terminate new parts of vias that can reflect high-frequency signals. Appropriate via management allows for maintaining signal integrity and provides consistent impedance throughout the routing track.

Step 7: Ground Plane Integrity and Return Path Control:

Maintaining ground plane integrity is a basic step in providing dependable USB performance. High-speed signals rely on a constant and low-impedance recovery path, which is delivered by the ground plane under the USB traces.

• Avoid splits, gaps, or voids in the ground plane under USB traces
• Use dedicated ground layers in multilayer PCBs
• Place USB signal layers directly adjacent to a solid ground plane
• Ensure the ground plane extends fully from the USB controller to the connector

Step 8: Implementing ESD and Surge Protection:

Electrostatic discharge protection is a mandatory step in any USB PCB layout because USB connectors are frequently exposed to user interaction. High-voltage ESD events can immediately damage sensitive USB transceivers if not appropriately operated.

• Add current-limit switches or restartable fuses
• Ensure that protection devices can handle the maximum USB current
• Use TVS diodes rated for USB VBUS voltage
• Place protection components near the connector

ESD protection devices should be specified as close as possible to the USB connector so that transient energy is clamped before it arrives at the internal circuitry. The routing between the connector, the ESD device, and the ground must be incredibly short and plain to minimize inductance and providefast reaction.

Step 9: Controlling EMI and Noise Coupling:

Electromagnetic interference management is a critical step in achieving an applicable and dedicated USB format. High-speed USB signals can emit noise if improperly routed or referenced, leading to failures during EMC testing.

Best Practices

• Use low-capacitance TVS diodes for data lines
• Ensure short return paths to ground
• Place ESD protection diodes close to the USB connector

To underrate EMI, USB traces should be controlled away from board borders, high-frequency timepieces, switching power supplies, and other noisy signals.

Step 10: USB 3.x and Type-C Specific Layout Steps:

SuperSpeed differential pairs must be routed with even closer impedance authority and better isolation from other signals to control crosstalk.

• Maintain pair-to-pair spacing to decrease crosstalk
• Separate USB 2.0 and USB 3.x signals
• Use low-loss PCB materials if required
• Route TX and RX pairs separately
• Avoid unnecessary connectors or vias
• Keep trace lengths short
• Avoid parallel routing with other high-speed signals
• Do not mix reference planes under different signal groups

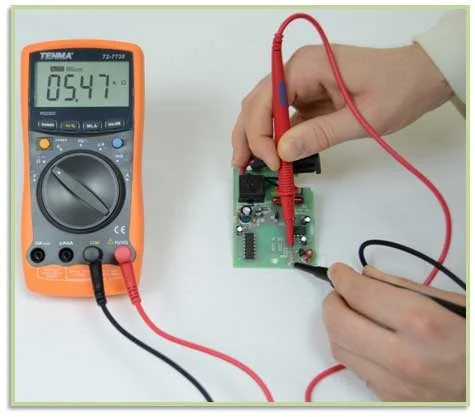

Step 11: Verification, Testing, and Design Validation:

The last step in USB PCB layout best practices is confirmation and validation. Before presentation, the designer must check the layout for impedance continuity, length matching, and reference plane integrity.

• Avoid exotic stack-ups unless required
• Use impedance coupons
• Perform USB compliance testing early
• Follow standard trace widths and spacing
• Provide clear impedance requirements to the PCB vendor
• Validate eye diagrams for high-speed designs

Conclusion:

USB PCB layout is a disciplined, whole technique that needs thorough preparation, awareness of facts, and a solid knowledge of high-speed signal conduct. From comprehending the USB measure and plotting the stack-up to routing differential pairs, operating power delivery, executing protection, and validating implementation, each step plays a crucial role in the success of the layout. By observing these USB PCB design best practices and completing each step with accuracy, hardware designers can create strong, high-performance USB interfaces that satisfy both functional and regulatory conditions. Every successful USB design begins with good format discipline, concentration on detail, and strict compliance with USB specifications.
